Churchill Vertical Bar

Churchill Vertical Bar railings are fabricated from square hollow section (SHS) posts and solid square vertical infill bars along with flat bar horizontal rails and decorative finials. They are compliant with the current British Standard, which is covered in BS1722 part 9. Churchill Vertical Bar railings make an ideal secure boundary fence at heights of up to 2 metres. Alternatively, lower height railings can be manufactured to be wall mounted into diamond cored holes or base plated to surface of brickwork. They are galvanised to BS EN ISO 1461 as standard and can be finished in a polyester powder coated colour of your choice.

Frequently Asked Questions

Are technical drawings available for Churchill railings?

Yes – Alpha Rail has a library of standard detail drawings available to view and download – click here to view.

What size infill bars and posts are most suitable for my project?

Section sizes are dependent on the height and weight of the railings. This technical blog offers guidance on section sizes to ensure your railings meet the relevant British Standard.

Do Alpha Rail metal railings comply with relevant British Standards?

Yes – as a quality assured company, Alpha Rail is dedicated to manufacturing excellence and all metal railings manufactured by us are fabricated in accordance with British Standards. Click here for more information on BS 1722 Part 9.

Does Alpha Rail offer a site survey service?

Yes – we can carry out full site surveys UK nationwide to take accurate measurements of site conditions, this will enable us to ascertain ground levels and curves that will help us to determine if any raked, radius or special length panels will be required.

Does Alpha Rail offer an installation service?

Yes, we offer an optional UK nationwide fitting service using our experienced installation teams.

What if there are uneven ground levels and curves in the fence line?

All railings manufactured by Alpha Rail are made bespoke to suit your exact project requirements. For uneven ground levels and curvatures in the fence line, panels can be raked and radiused to suit. Click the links to learn more.

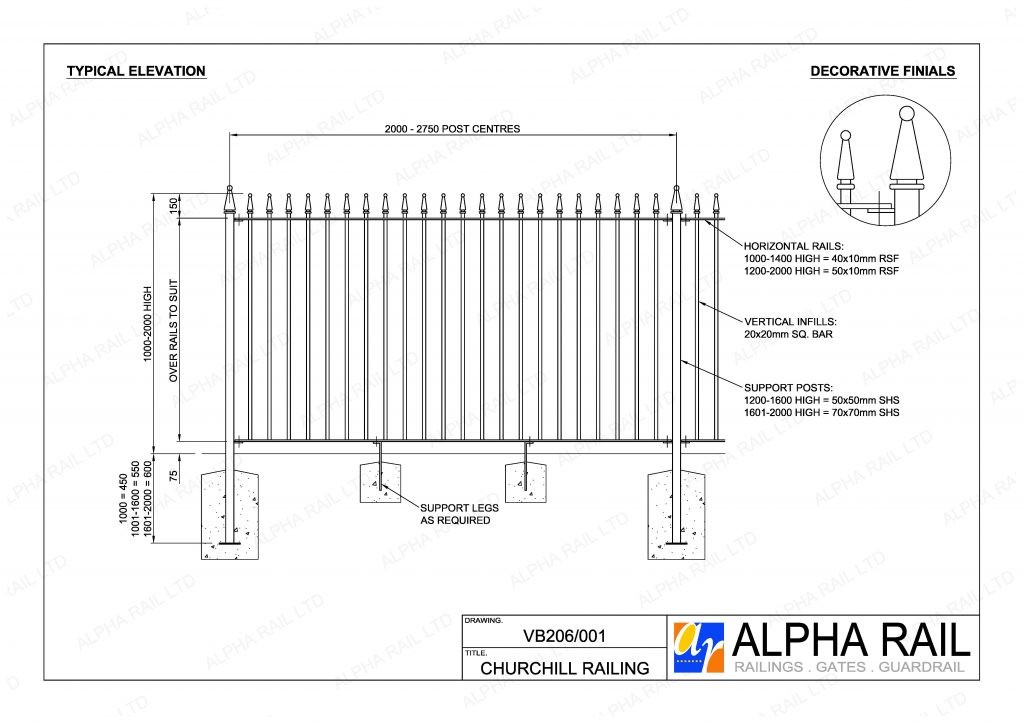

PDF Standard detail drawings available to view and download

View Technical Drawings
Drawing
Specification
Fixing Options

Drawing

Specification

Conformity: BS1722 part 9

Height: up to 2000mm

Horizontal Rails: 40x10mm RSF or 50x10mm RSF

Vertical Infills: 20x20mm Square Bar c/w decorative finials

Support Posts: 50x50mm SHS or 70x70mm SHS

Centres of Posts: 2000mm to 2750mm

Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut

Finish: Hot dipped galvanised to BS EN ISO1461

Colour: Polyester powder coated in a RAL colour of your choice

Method of setting posts: Posts rooted into concrete foundations, grouted into core drilled holes or baseplate fixed with anchor bolts

About Churchill Railings

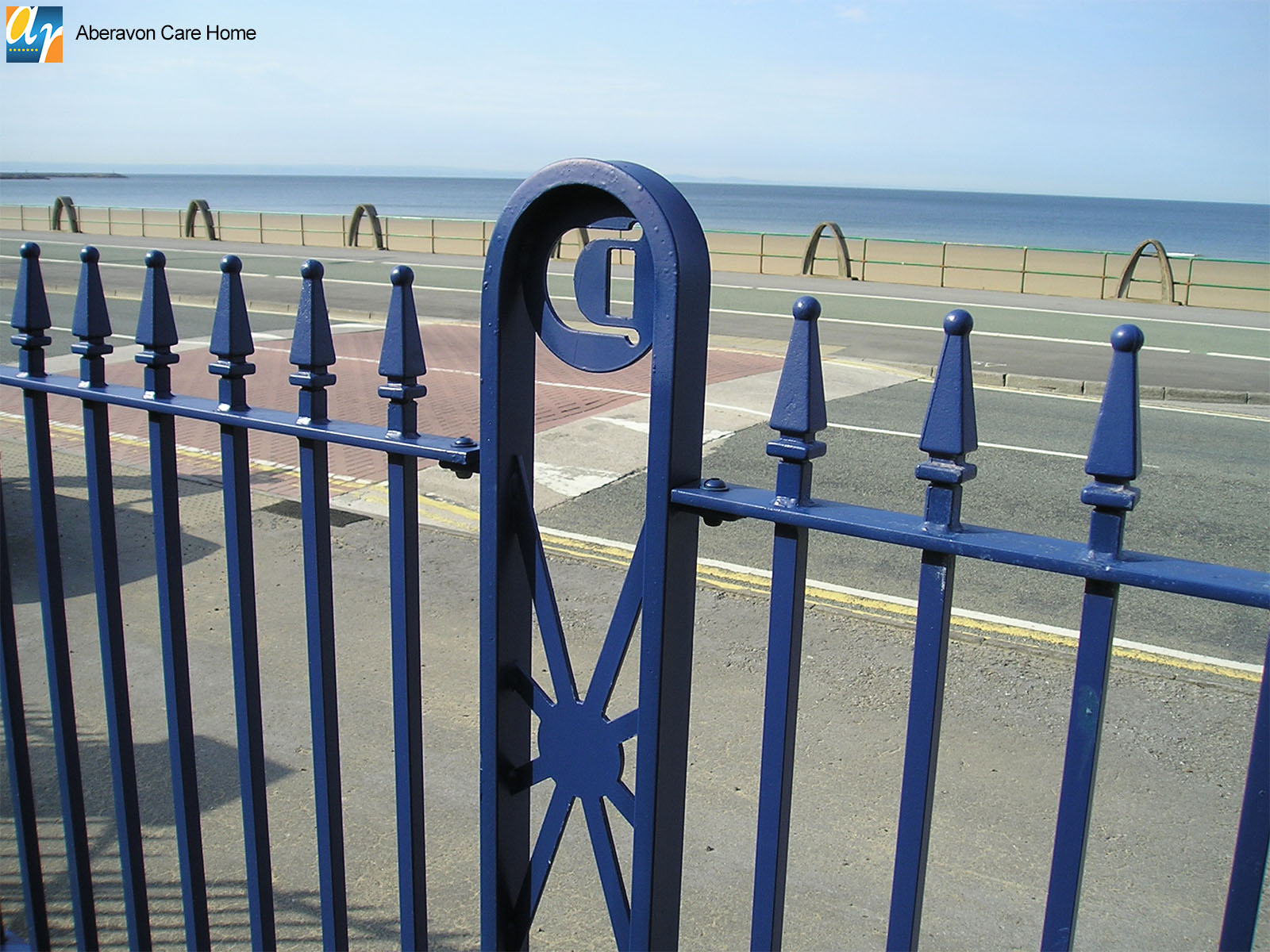

The Churchill vertical bar railing system was developed to offer an elegant alternative to the standard vertical bar system. Featuring an attractive decorative finial, plus square infills and posts, the Churchill vertical bar railings is perfect for enhancing the aesthetics of an area. As with all our Alpha Rail metalwork, the Churchill vertical bar railings can be supplied to your exact requirements in lengths tailored to suit the project. It is therefore a perfect decorative feature for the top of perimeter walls as well as for free-standing applications.

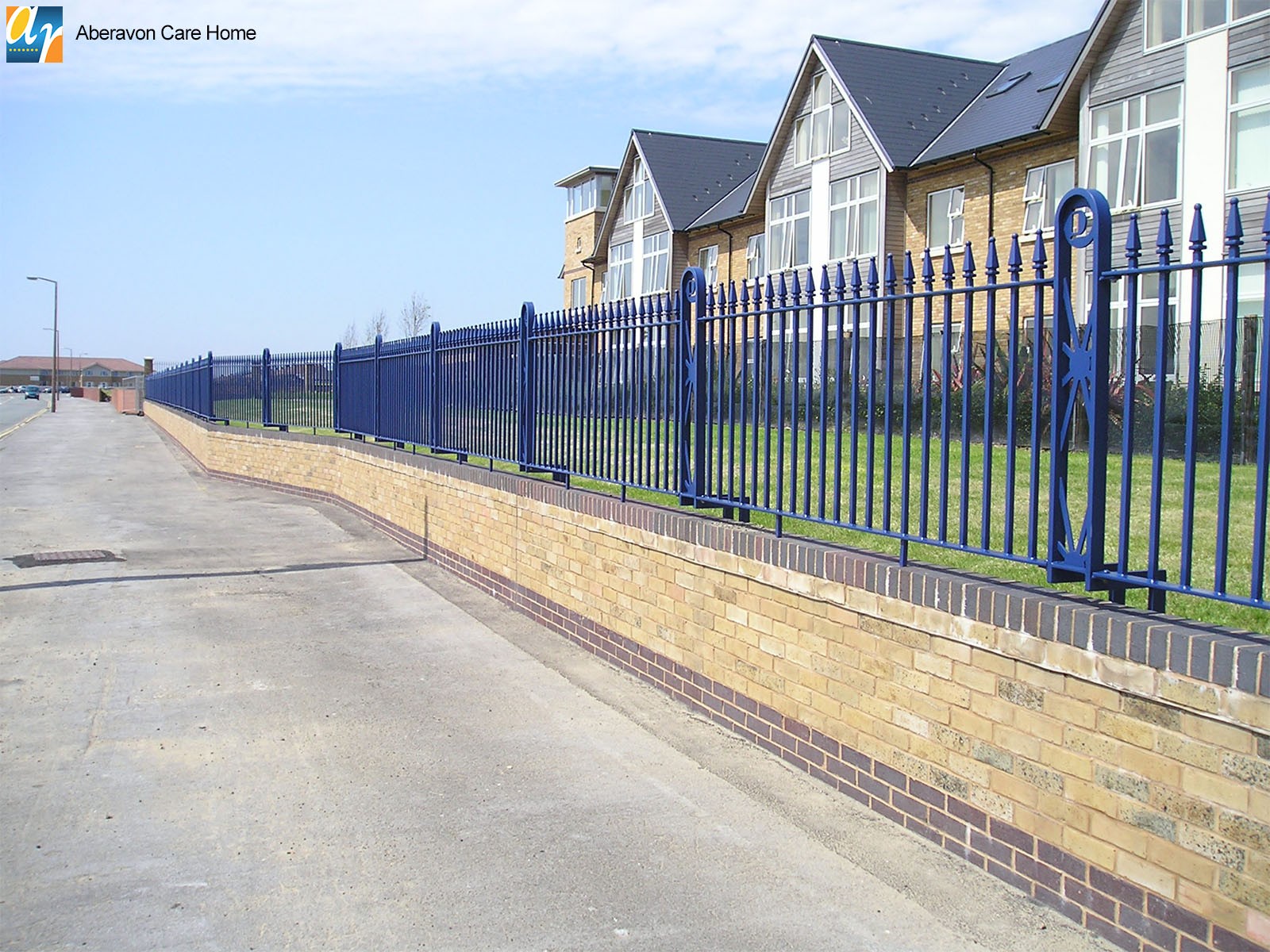

Please browse through the Alpha Rail projects library to see examples of our previous projects, alternatively browse our sector gallery.

Click here to view finish and colour options.
