Flat infill bars have proved very popular with architects, designers and contractors as they deliver a differentiated look to the completed metal railings project.

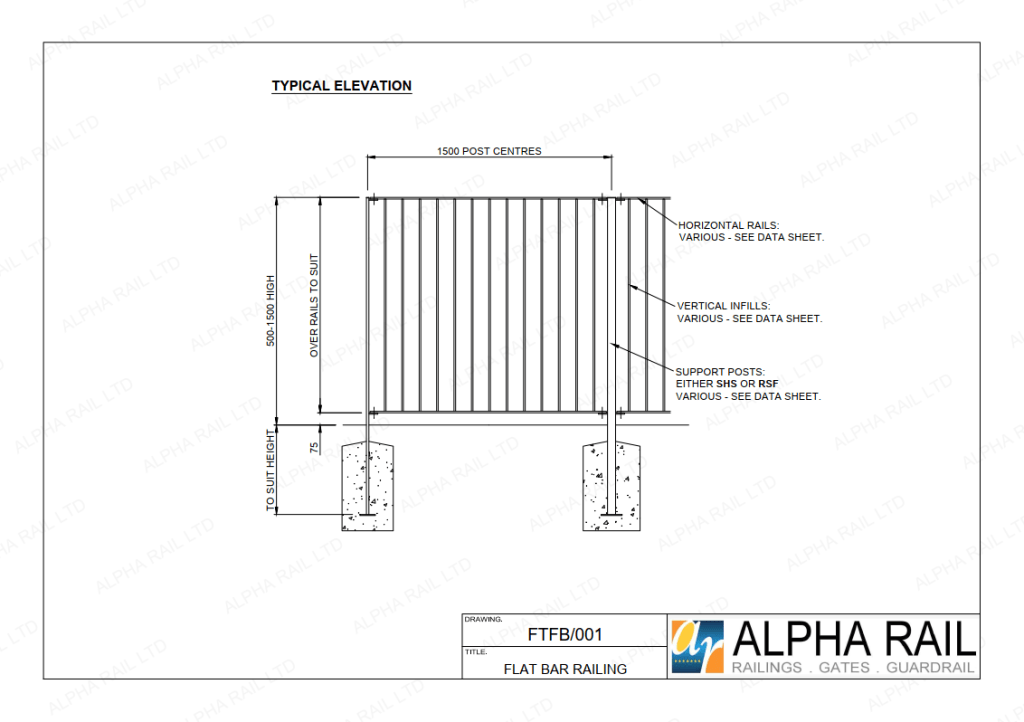

The tabs below provide a standard detail drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.
Conformity: BS1722 part 9
Height: 1000mm to 1400mm
Horizontal Rails: 40x10mm RSF or 50x10mm RSF
Vertical Infills: 40×8 RSF or 50×8 RSF
Support Posts: 50x50mm SHS
Centres of Posts: 2000mm
Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut
Finish: Hot dipped galvanised to BS EN ISO1461
Colour: Polyester powder coated in a RAL colour of your choice
Method of setting posts: Posts rooted into concrete foundations, grouted into core drilled holes or baseplate fixed with anchor bolts
