The Humber Railings are very eye catching as they feature a spherical top finial on square posts, and round infills. The Humber is perfect for adding that extra detailing to enhance street railings, yet combines the all important need for security with a safety conscious rounded finial so as not to cause harm.

The tabs below provide a detailed drawing that you may download as well as size and fixing options. Click on a drawing to view it in PDF format.

If you require any further information for your project please do not hesitate to contact us.

Contact Us
Drawing
Specification
Fixing Options

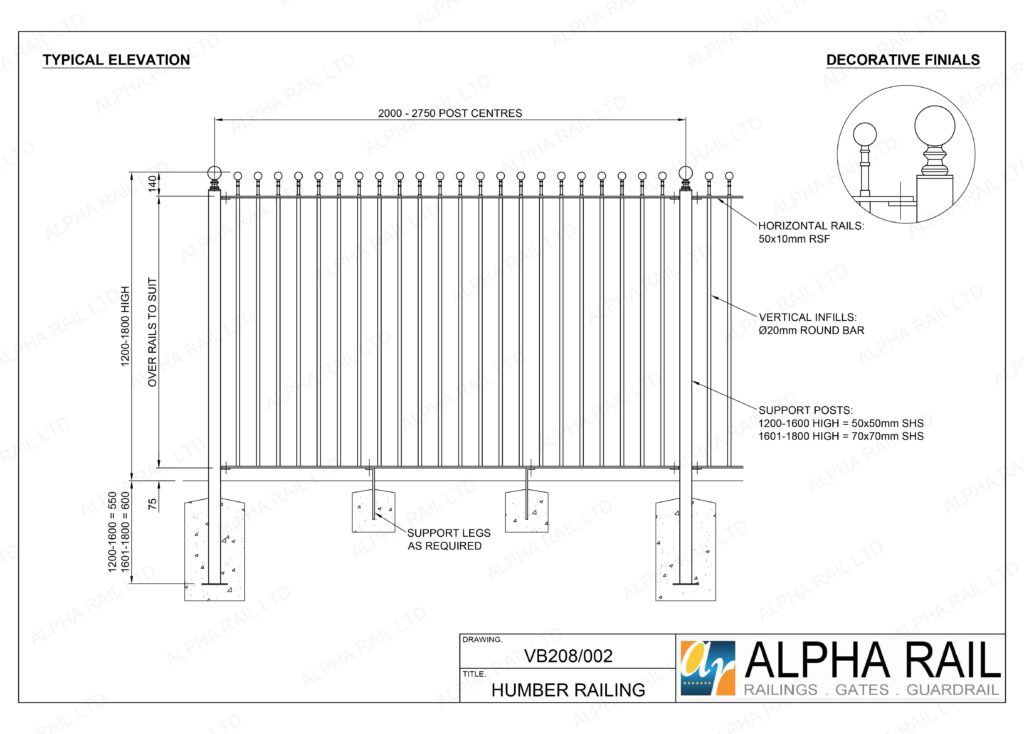

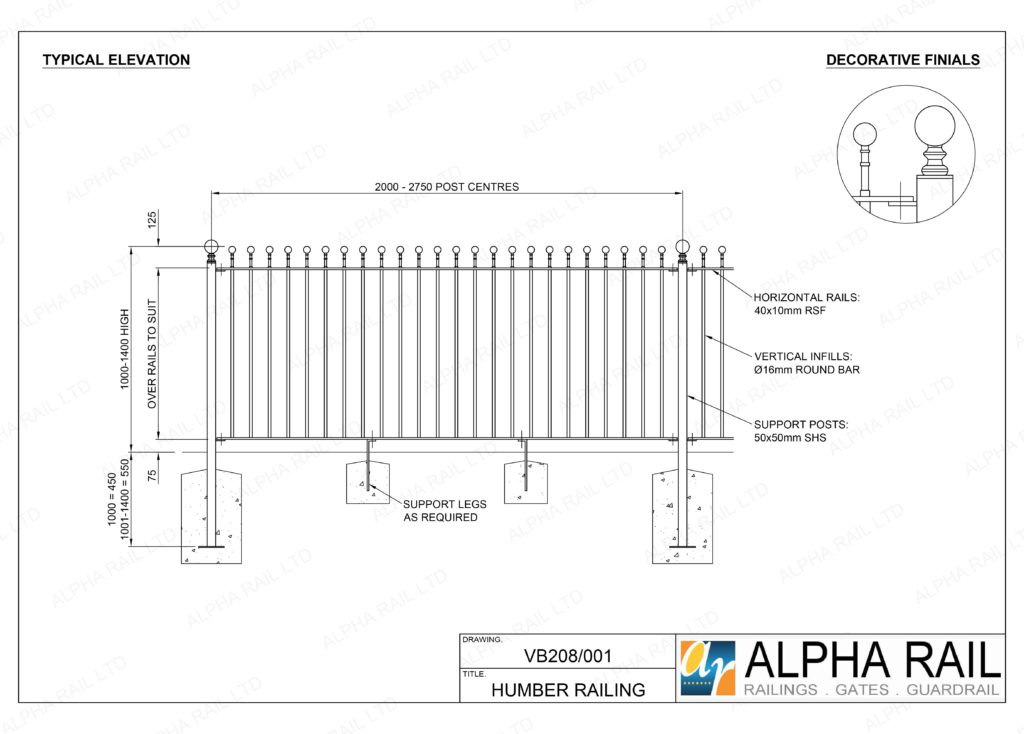

Drawing

Specification

Conformity: BS1722 part 9

Height: 1000mm to 1800mm

Horizontal Rails: 40x10mm RSF and 50x10mm RSF

Vertical Infills: Ø16mm Round Bar or Ø20mm Round Bar c/w decorative finials

Support Posts: 50x50mm SHS or 70x70mm SHS

Centres of Posts: 2000mm to 2750mm

Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut

Finish: Hot dipped galvanised to BS EN ISO1461

Colour: Polyester powder coated in a RAL colour of your choice

Method of setting posts: Posts rooted into concrete foundations, grouted into core drilled holes or baseplate fixed with anchor bolts
