V2 Optirail

Home > Technical Drawings > V2 Optirail

The V2 Optirail offers a staggered bar system with optimum sight angle of 2.5 to 5 degrees, for use on straight roads moderate to high speeds.

The tabs below provide a detailed drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.

If you require any further information for your project please do not hesitate to contact us.

Contact Us

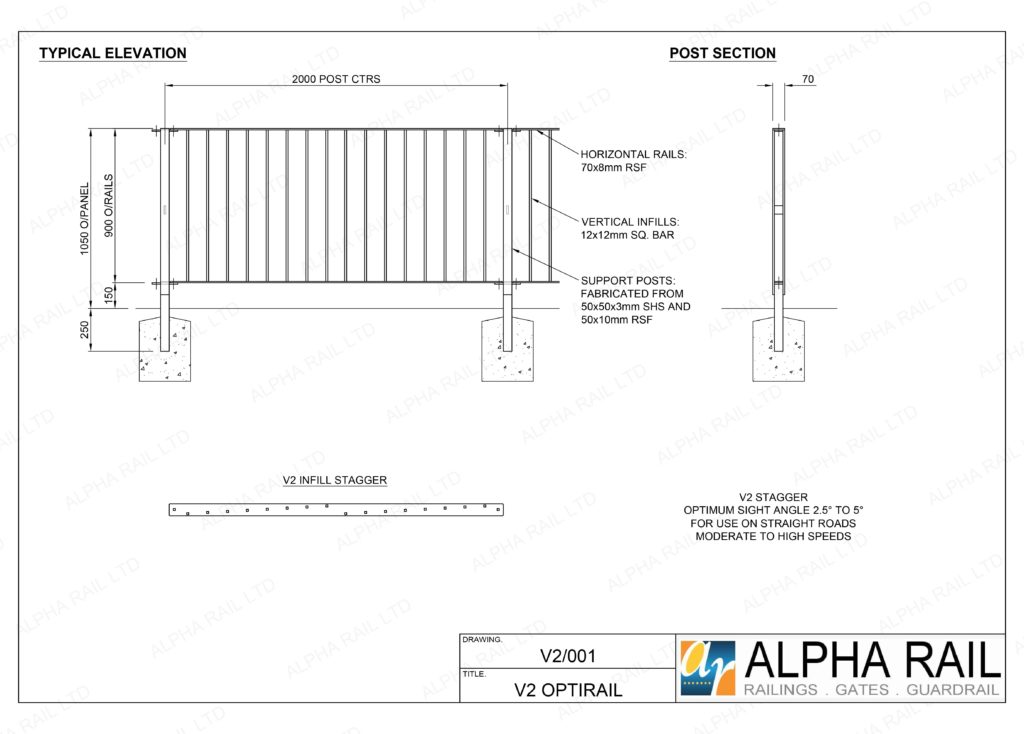

Drawing
Specification
Fixing Options

Drawing

Specification

Conformity: BS7818:1995

Height: 1050mm

Weight: 1m panel – 16kg, 2m panel – 33kg, Optirail post – 11kg

Horizontal Rails: 70x8mm RSF

Vertical Infills: 12mm Square Bar set to V2 Infill Stagger

Support Posts: 50x50x3mm SHS and 50×10 RSF

Centres of Posts: 1000mm to 2000mm

Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut

Finish: Hot dipped galvanised to BS EN ISO1461

Colour: Polyester powder coated in a RAL colour of your choice

Method of setting posts: Full length posts to be concreted in (rooted)
