V8 Optirail

Home > Technical Drawings > V8 Optirail

Staggered bar system with optimum sight angle of more than 14 degrees, for use on curves of less than 15m radius.

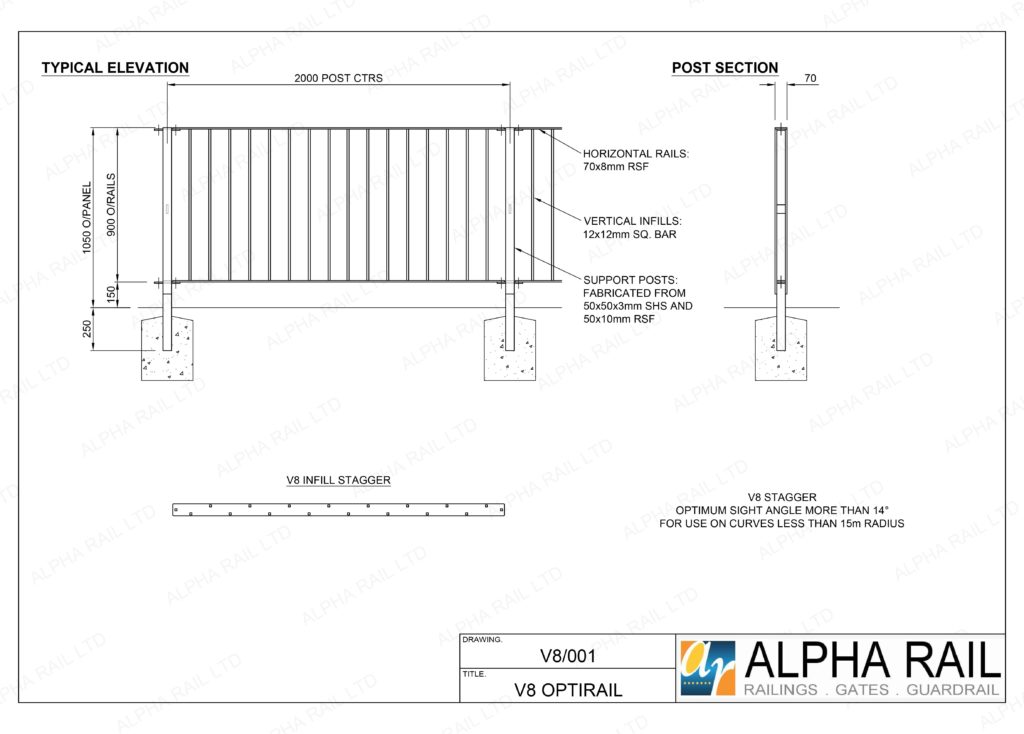

The tabs below provide a detailed drawing that you may download, as well as size and fixing options. Click on a drawing to view it in PDF format.

If you require any further information for your project please do not hesitate to contact us.

Contact Us
Fixing Options



Conformity: BS7818:1995

Height: 1050mm

Weight: 1m panel – 16kg, 2m panel – 33kg, Optirail post – 11kg

Horizontal Rails: 70x8mm RSF

Vertical Infills: 12mm Square Bar set to V8 Infill Stagger

Support Posts: 50x50x3mm SHS and 50×10 RSF

Centres of Posts: 1000mm to 2000mm

Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut

Finish: Hot dipped galvanised to BS EN ISO1461

Colour: Polyester powder coated in a RAL colour of your choice

Method of setting posts: Full length posts to be concreted in (rooted)
