Traditional Estate Rail

Home > Technical Drawings > Traditional Estate Rail

Estate Rail is known by a variety of names, such as ‘deer’ or ‘park’ fencing. These particular Estate Railings come as loose components, and no welding is required.

The tabs below provide a detailed drawing that you may download as well as size and fixing options. Click on a drawing to view it in PDF format.

If you require any further information for your project please do not hesitate to contact us.

Contact Us
Drawing
Specification
Fixing Options

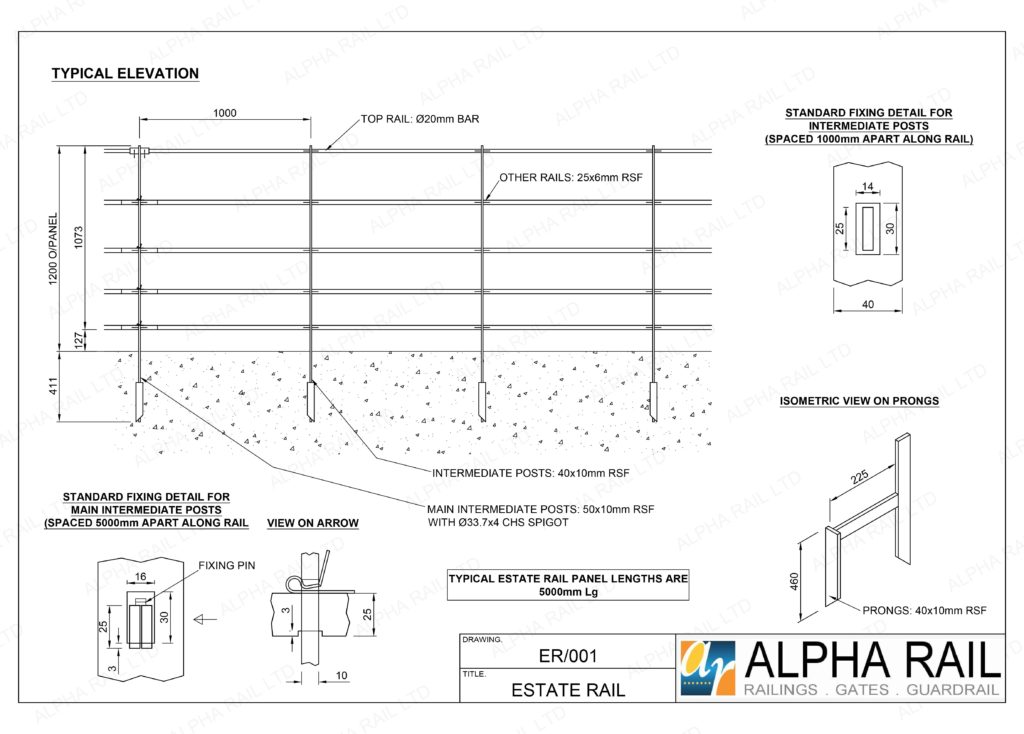

Drawing

Specification

Conformity: BS1722 part 8

Height: 1000mm to 2000mm

Top Rail: Ø20mm Bar

Other Rails: 25x6mm RSF

Main Intermediate Posts: 50x10mm RSF with Ø33.7x4mm CHS Spigot

Intermediate Posts: 40x10mm RSF

Centres of Posts: 2000mm to 2750mm

Panel Fixings: Stainless steel grade A2 M10 dome head or countersunk bolt with washer and hexagon or security nut

Finish: Hot dipped galvanised to BS EN ISO1461

Colour: Polyester powder coated in a RAL colour of your choice

Method of setting posts: Posts rooted into concrete foundations, grouted into core drilled holes
